LPH, HM, HS-A1 and HSR Series

4-Axis SCARA Robots

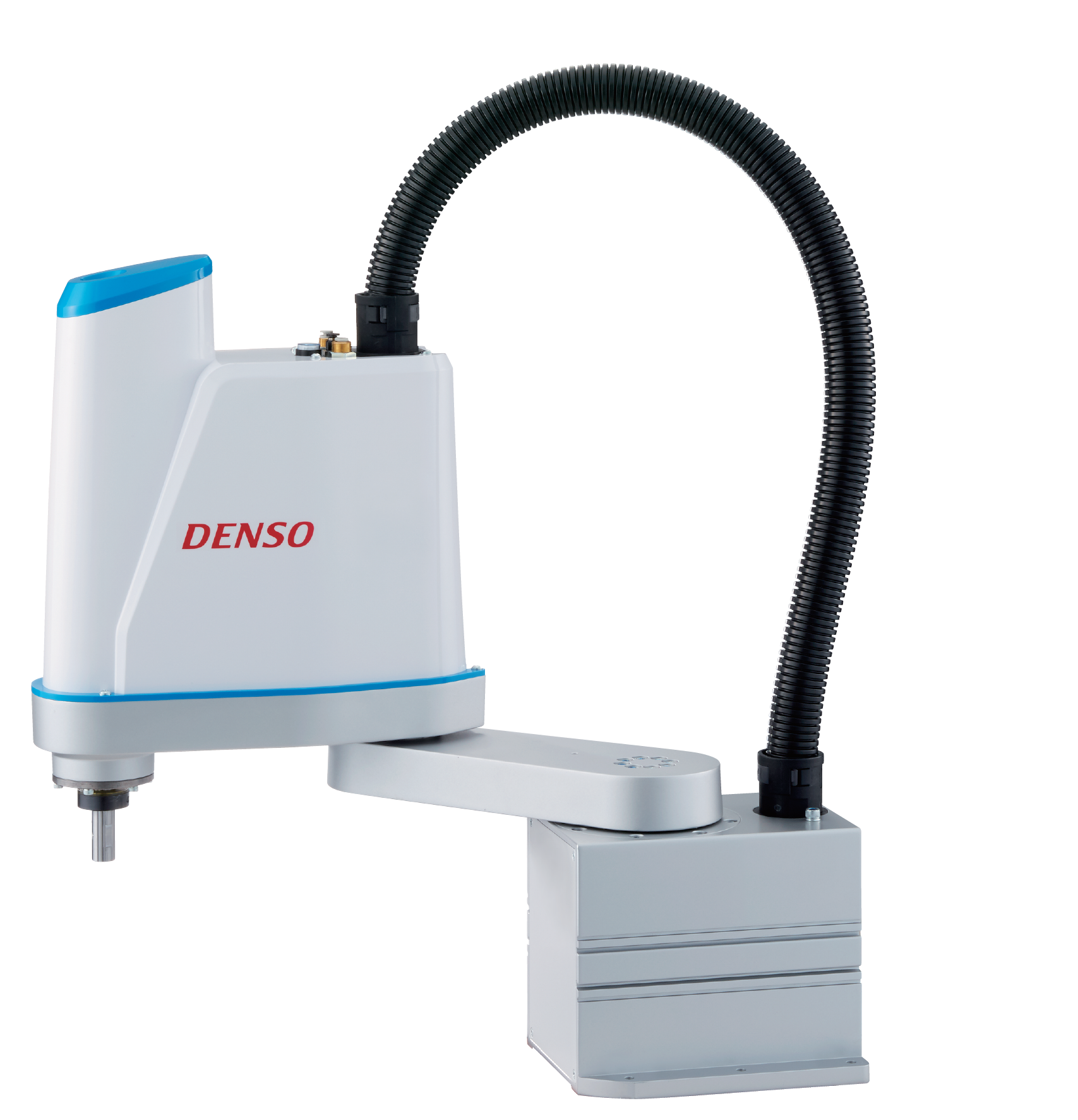

LPH Series

The high-performance, competitively-priced LPH-040 4-axis SCARA robot is an excellent choice for users who are new to automation. Compact and lightweight, LPH-040 handles lighter duty applications with ease, such as electronics, assembly, and pick-and-place to name a few. The LPH is a perfect option for first-time buyers looking to reduce start-up costs for projects that require a shorter, three- to five-year duty lifecycle.

Max Payload

3

kg

Reach

400

mm

Cycle Time

0.45

sec

Repeatability

±0.020

mm

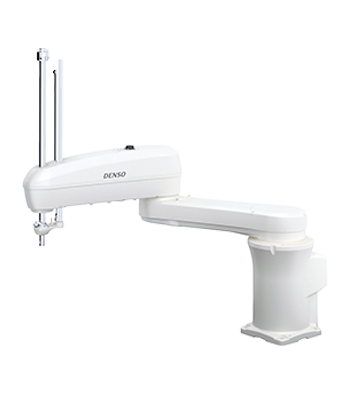

HM Series

The HM Series 4-axis SCARA robots offer outstanding speed and repeatability. Although these small industrial robots have a compact, space saving design, they can handle 20 kg payloads. In addition, their maximum allowable moment of inertia of 0.45 kgm2 is six times larger than that of conventional robots, permitting a wide variety of applications. All HM Series robots are available in standard or dust- and mistproof (IP65) configurations. ANSI and CE compliance allows global deployment. UL listed models are available for both the U.S. and Canada.

Max Payload

20

kg

Reach

600-1000

mm

Cycle Time

0.29-0.31

sec

Repeatability

±0.020/±0.025

mm

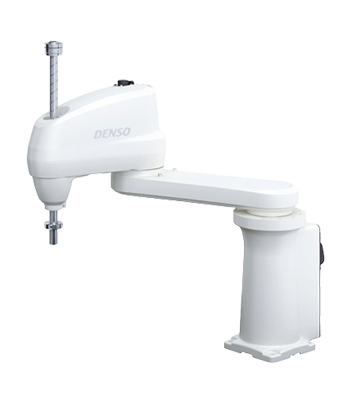

HS-A1 Series

The HS-A1 Series compact, 4-axis SCARA robots offer the highest speed and repeatability in their class. Although these small industrial robots have a compact, space-saving design, they have a large load-handling capability, with a maximum payload of 5 kg. In addition, their large, 0.1 kgm2 maximum allowable moment of inertia enables a wide range of end effectors and applications. All HS-A1 Series robots are available in dust- and mistproof (IP65) or ISO 4 (class 10) cleanroom configurations. ANSI and CE compliance allows global deployment. UL-listed models are available for both the U.S. and Canada.

Max Payload

5

kg

Reach

350-550

mm

Cycle Time

0.35

sec

Repeatability

±0.015/±0.020

mm

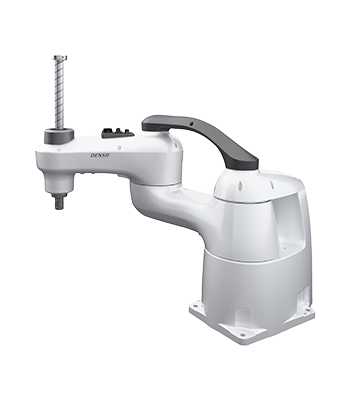

HSR Series

The HSR Series uses advanced vibration control, a newly designed, highly rigid lightweight arm and improved heat dissipation in the base unit to achieve new levels of continuous high-speed performance and repeatability.

  • Quick acceleration
  • Runs continuously at high speed
  • Stops precisely

Max Payload

8

kg

Reach

480-650

mm

Cycle Time

0.28-0/31

sec

Repeatability

±0.010/±0.012

mm
