Overview

Macros as found in PacScript and DENSO robot arms replaces a part of code with a defined name.  Macros have the potential to greatly assist in reading through code and intuitively understanding what is going on.

Video Tutorial

Step by Step Guide

Step 1

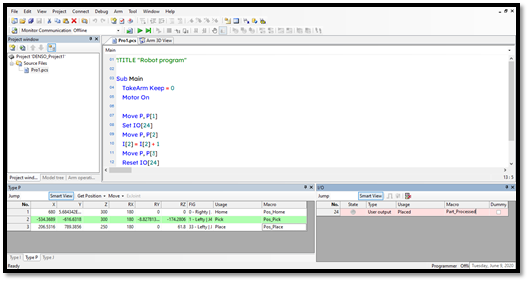

Enter the names you wish to use as Macros in the Macro section of either the IO or the Global Variable tables.

Step 2

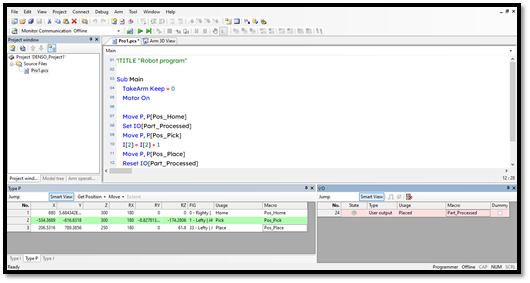

Add and replace your Macro names into your variables.  For Example: instead of P[1], you’ll type P[Pos_Home].  Instead of IO[24], you’ll type IO[Part_Processed].  Note the brackets are required to use Macros.

Step 3

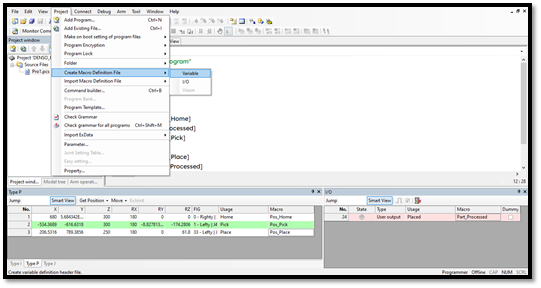

After entering your Macro Names into your program(s), you’ll need to create a header file to define them.  This can be done easily by the following: Project -> Create macro definition file -> Variable

Step 4

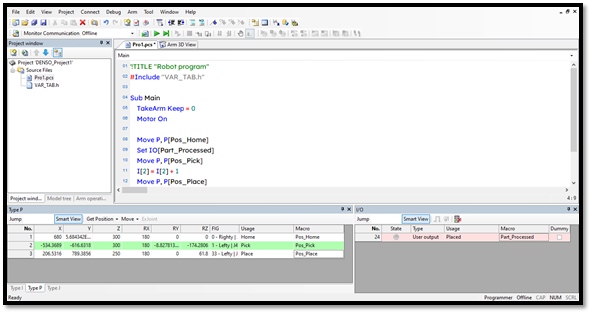

This will create a header definition file, and add it to your program list.  You’ll now need to include that new header file in your program that has the Macros.

Owner’s Manual Reference

https://www.fa-manuals.denso-wave.com/en/usermanuals/000725/
