Error: Operation panel main page (Main.pns) is not found

Modified on Wed, 07 Jul 2021 at 03:18 PM

Problem

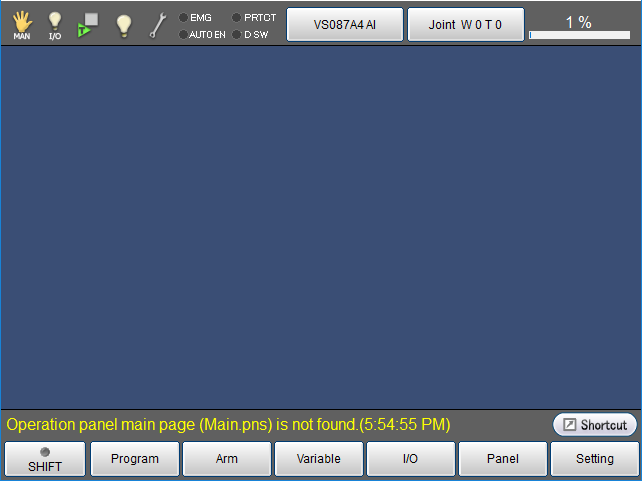

Pressing the [PANEL] button on the teach pendant shows the following message

Related error codes80800001


Solution

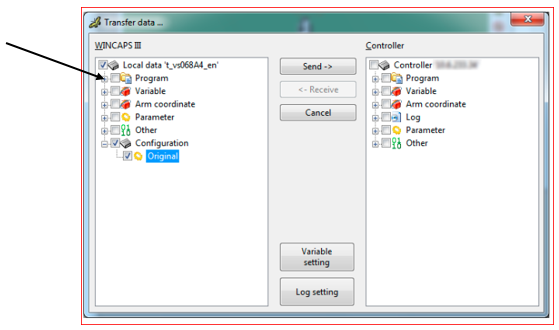

Make sure that you transfer your panel (.pns) files to the controller. These panel files will be listed with your other program files during a file transfer.

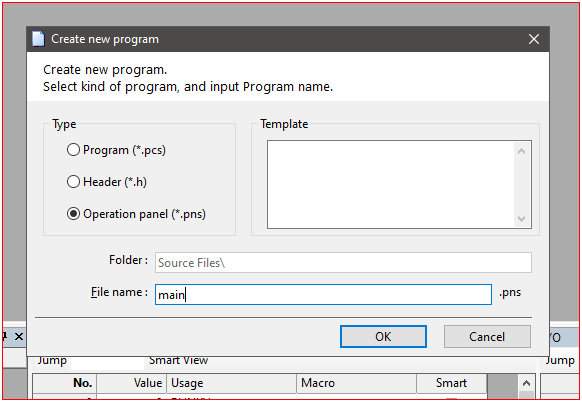

Also, your top-level panel screen must always be titled “main.pns” as shown below.  This is the panel screen that is accessed from the Teach Pendant F5 Function button.  From your main.pns panel screen, you can use the PAGECHANGE command to access other panel screens as you see fit. Other panel screens can be named with the same provisions as other programs.


TP Panel Guide

https://www.fa-manuals.denso-wave.com/en/usermanuals/001852/
