How to Replace IO IC chip on RC7M Controller

  1. Home
  2. Knowledge Base
  3. Legacy Equipment
  4. How to Replace IO IC chip on RC7M Controller

NOTE
Handle board with care.

Video Tutorial

Step by Step Guide

Pictures show a board that is currently setup for NPN.

Step 1

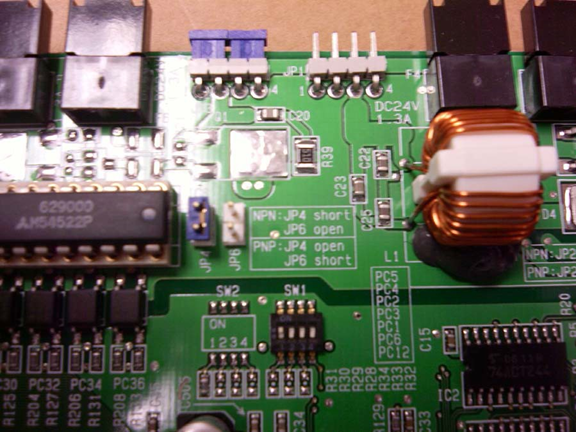

Please jumper the two pins on JP6 and leave JP4 open.

Step 2

Replace the 3 IC chips with the proper PNP type M54564P (410077-0020)

For NPN please use M54522P (part number: 410077-0010)

Step 3

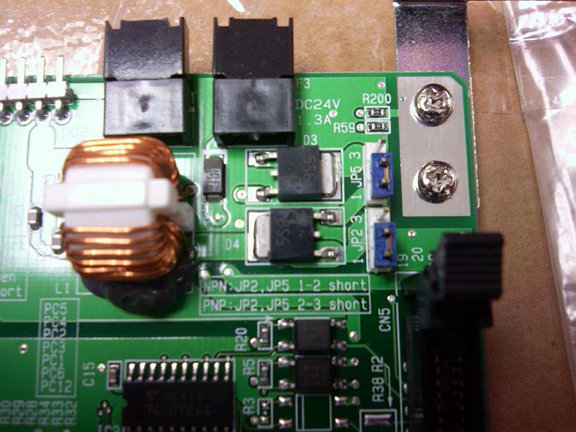

Short pins 2 and 3 on JP2 and JP5.

See in blue for additional information about RC7 I/O boards. “Switching procedure is the same for both”

There are two types of RC7 controller:
One controller has a safety box and the other a safety board. You can determine which I/O card is needed by the following:

If the I/O board has no chip it talks to the safety box.
If the I/O board has a chip it talks to the safety board.
Once this is determined see description and part number below for correct I/O board.

If a new board is needed see reference below:

PNP type used with Safety Box – 410010-3290
NPN type used with Safety Box – 410010-3280
PNP type used with Safety Board – 410010-3270
NPN type used with Safety Board – 410010-3260
