Resetting Encoder (RC7 / RC7M)

  1. Home
  2. Knowledge Base
  3. Legacy Equipment
  4. Resetting Encoder (RC7 / RC7M)

Overview

The following explains the encoder resetting procedure.

Tools and Parts needed

Full size Teach Pendant to follow this menus.

  • 410100-1761 – Teach Pendant (4m) (RC7/8)
  • 410100-1771 – Teach Pendant (8m) (RC7/8)
  • 410100-1781 – Teach Pendant (12m) (RC7/8)

Download Resources

PDF Version (Maintainer Password Required)

Step by Step Guide

Step 1

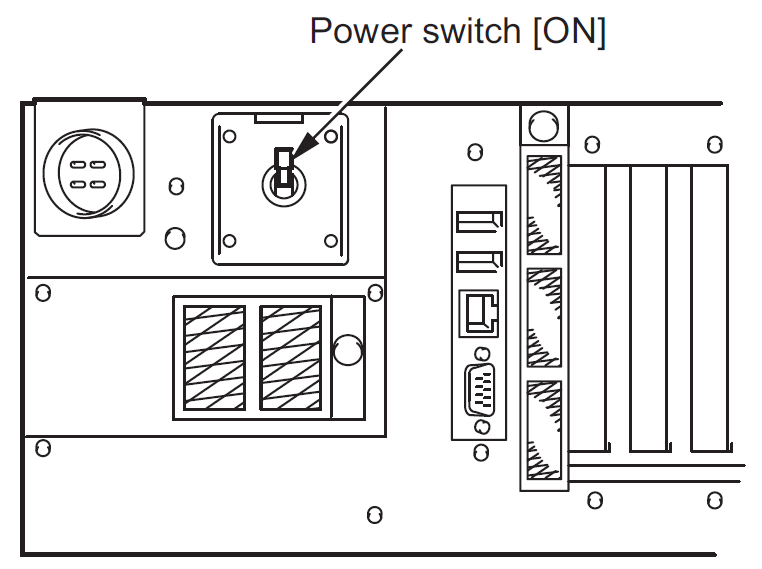

Turn on the power switch on controller.

Step 2

Set the mode select switch on teaching pendant to MANUAL.

Step 3

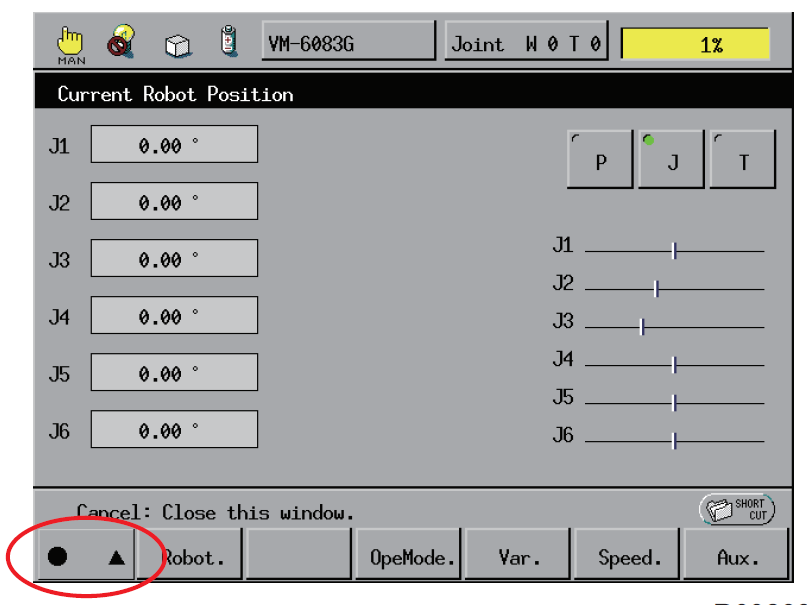

Push [F2 Arm] on the pendant screen.

Step 4

Push [SHIFT].

Step 5

Push [F6 Maint.].

Step 6

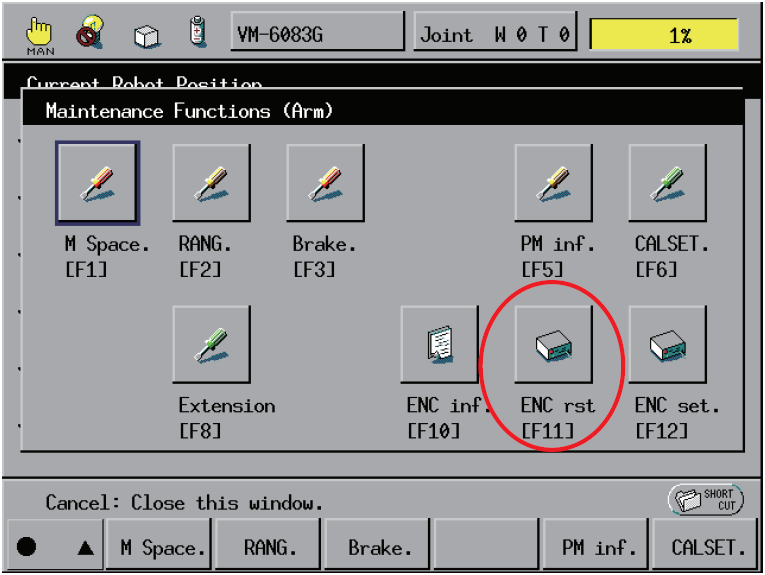

Push [F11 ENC rst].

Step 7

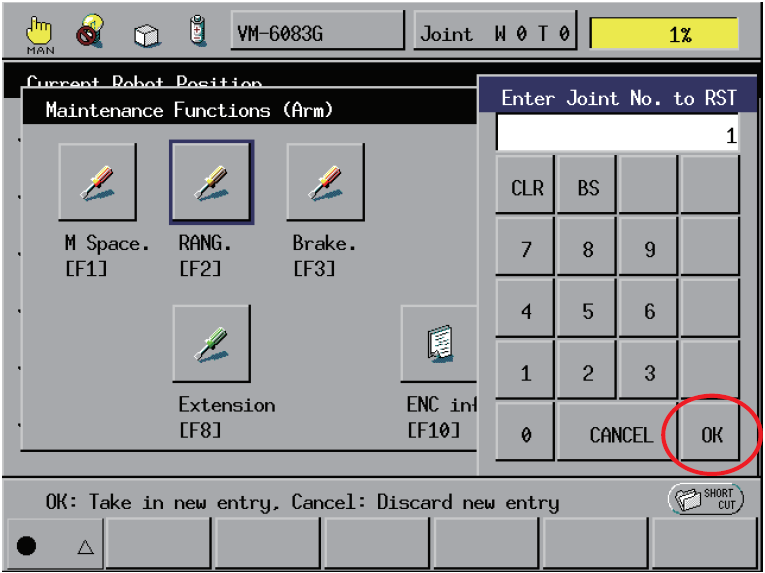

Enter the axis to be reset and push [OK].

Step 8

Confirm the message and push [OK] twice.

Step 9

Push [Cancel] twice to return to the original screen.
