The high-performance, competitively-priced LPH-040 4-axis SCARA robot is an excellent choice for users who are new to automation. Compact and lightweight, LPH-040 handles lighter duty applications with ease, such as electronics, assembly, and pick-and-place to name a few. The LPH is a perfect option for first-time buyers looking to reduce start-up costs for projects that require a shorter, three- to five-year duty lifecycle.
Max Payload
3
kg
Reach
400
mm
Cycle Time
0.45
sec
Repeatability
±0.020
mm
Info
Overview
- High-performance
- Competitively priced
- Compact and lightweight

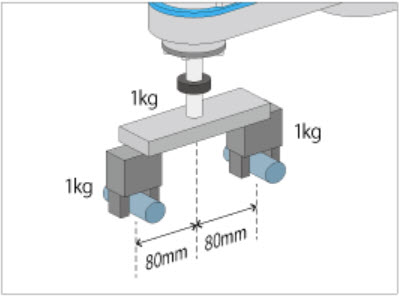

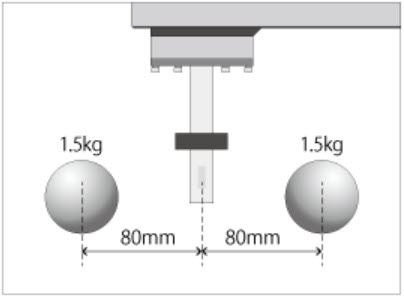

Gripper Design with High Degree of Freedom
The maximum moment of inertia of the T-axis is large in order to provide a gripper design with a high degree of freedom.
* Also supports use in other configurations including in an overhanging position.
Reduction in Work Time without the Use of PLC
The robot and surrounding equipment can be controlled together according to the purpose through use of the high-performance controller RC8 function. This feature realizes a total cost down for equipment.
Reduction in Work Time without the Use of PLC
The robot and surrounding equipment can be controlled together according to the purpose through use of the high-performance controller RC8 function. This feature realizes a total cost down for equipment.
Enables Control from PLC with No Programming Knowledge Required
EVP2 is an image processing application specially developed for use with a “pick and place” robot. This software offers enhanced functionality and several times greater processing power than the previous EVP application, while maintaining the same ease of operation.
Specifications
Downloads
Robot Series Product Sheet
Overview of all DENSO robots
- Version
- Download 1247
- File Size 0.00 KB
- File Count 1
- Create Date June 9, 2022
- Last Updated January 16, 2024

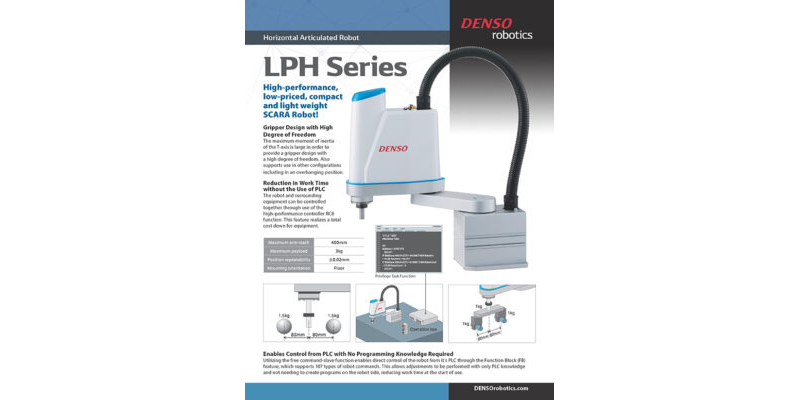

LPH Series Product Sheet
Two-page product sheet with features, characteristics and specs.
- Version
- Download 118
- File Size 0.00 KB
- File Count 1
- Create Date October 15, 2021
- Last Updated June 9, 2022
